Pakistan’s first NEMA submersible motor manufacturer

Submersible motors built in Lahore, specified worldwide.

Water-cooled, rewindable 6″ to 12″ motors from 5.5 to 300 HP, plus stainless and cast-iron mixed-flow pumps. Engineered to IEC 60034-1, certified to NSF/ANSI/CAN 61, and produced in a 110,000 sq. ft. plant running European machinery.

Explore the KM-Series Request a Quote
  • Since 2015Founded in Lahore
  • 110,000 ft²Manufacturing area
  • 30,000Units annual capacity
  • 12+ nationsAcross 5 continents
  • 100%Performance tested before dispatch

Certified by international bodies

  • NSF/ANSI/CAN 61Drinking-water safe
  • CEEU conformity, RoyalCert
  • PSQCAPS/IEC 60034-1
  • ISO 9001:2015Quality management
  • ISO 14001:2015Environmental mgmt.
  • ISO 45001:2018Health & safety
Submersible motors · KM-Series

One NEMA platform, from 5.5 to 300 HP.

Every KM motor is water-cooled and rewindable, with NEMA coupling dimensions so it drops onto any NEMA-standard pump. Pick the borehole, then the power.

Power range by model

KM6 · Single Flange6″ borehole · standard5.5 – 50 HP4 – 37 kWKM6 · Double Flange6″ borehole · optional5.5 – 75 HP4 – 55 kWKM88″ borehole · double flange30 – 200 HP22 – 150 kWKM10 · 2-pole10″ borehole · double flange75 – 270 HP56 – 200 kWKM10 · 4-pole10″ borehole · high torque40 – 175 HP30 – 130 kWKM12 · 4-pole12″ borehole · double flange100 – 300 HP75 – 223 kWBottom IntakeWet-wound · vertical or inclined30 – 200 HP22 – 150 kW
380–415 V @ 50 Hz · 460 V @ 60 Hz · KM6 also 230 / 380 V @ 60 HzCast iron with NSF epoxy as standard · complete 316L stainless optional

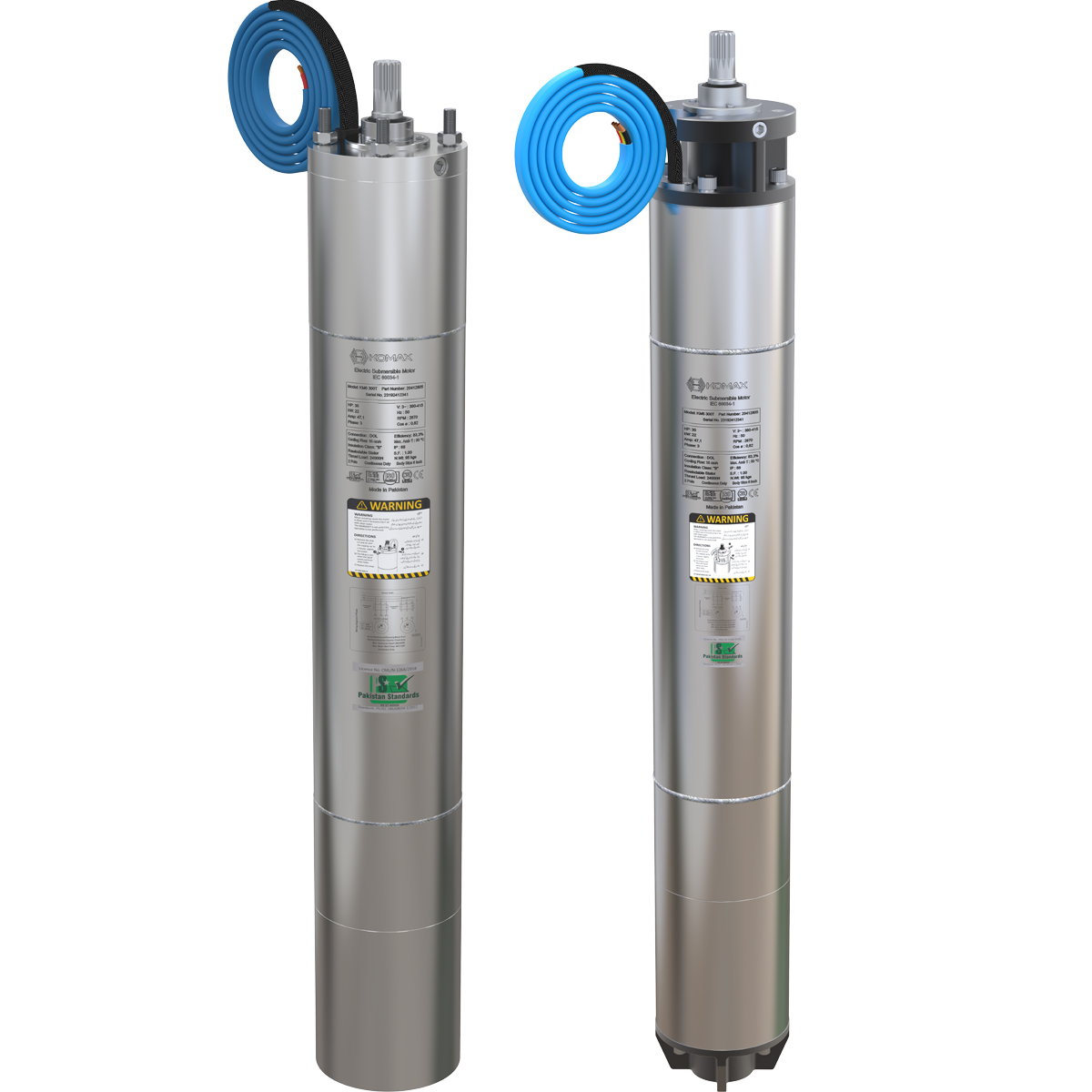

KM6 Series6″

KM6 Series

Single or double flange, for agriculture and light municipal wells.

5.5–75 HP · 2-pole

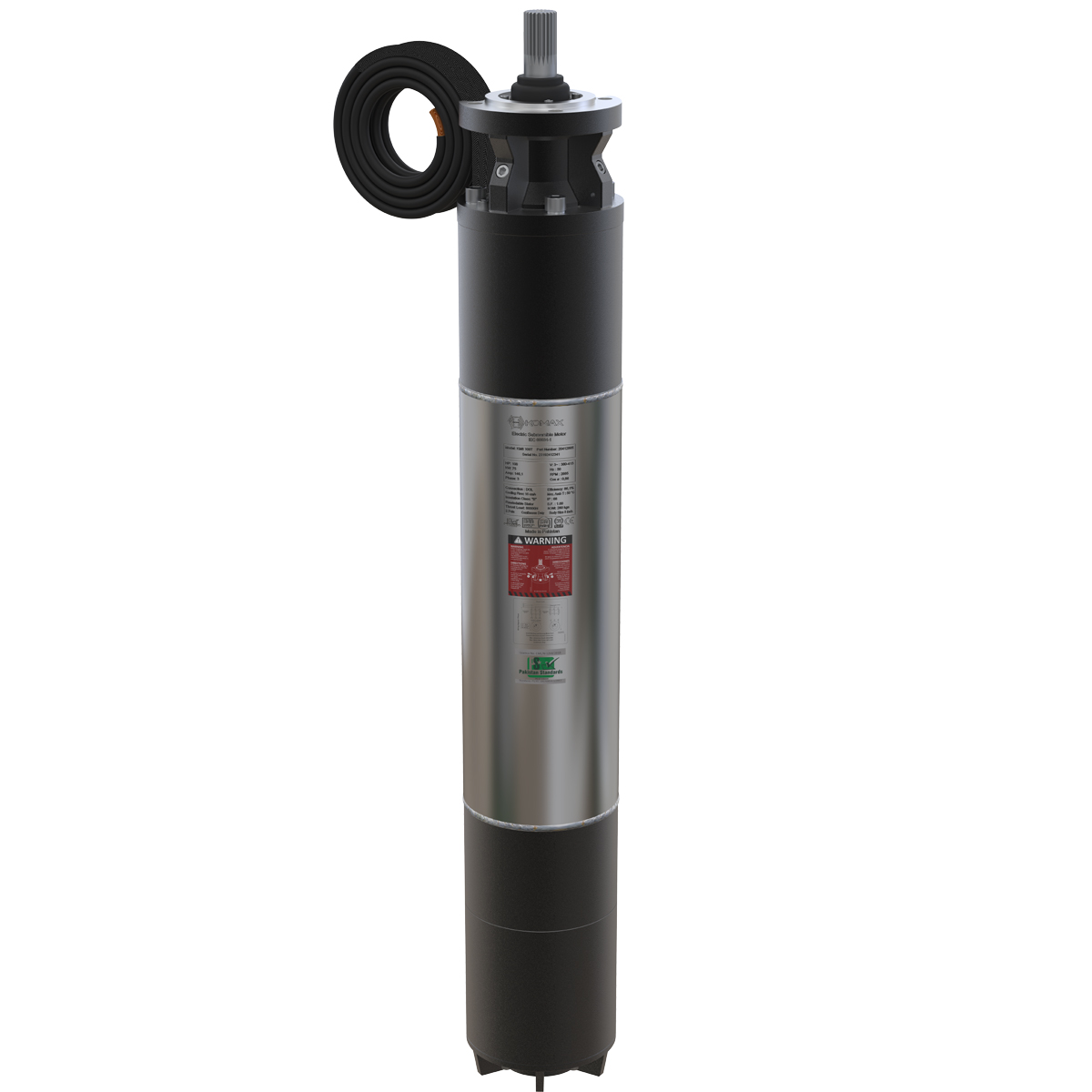

KM8 Series8″

KM8 Series

Double-flange workhorse for large irrigation and industrial lifting.

30–200 HP · 2-pole

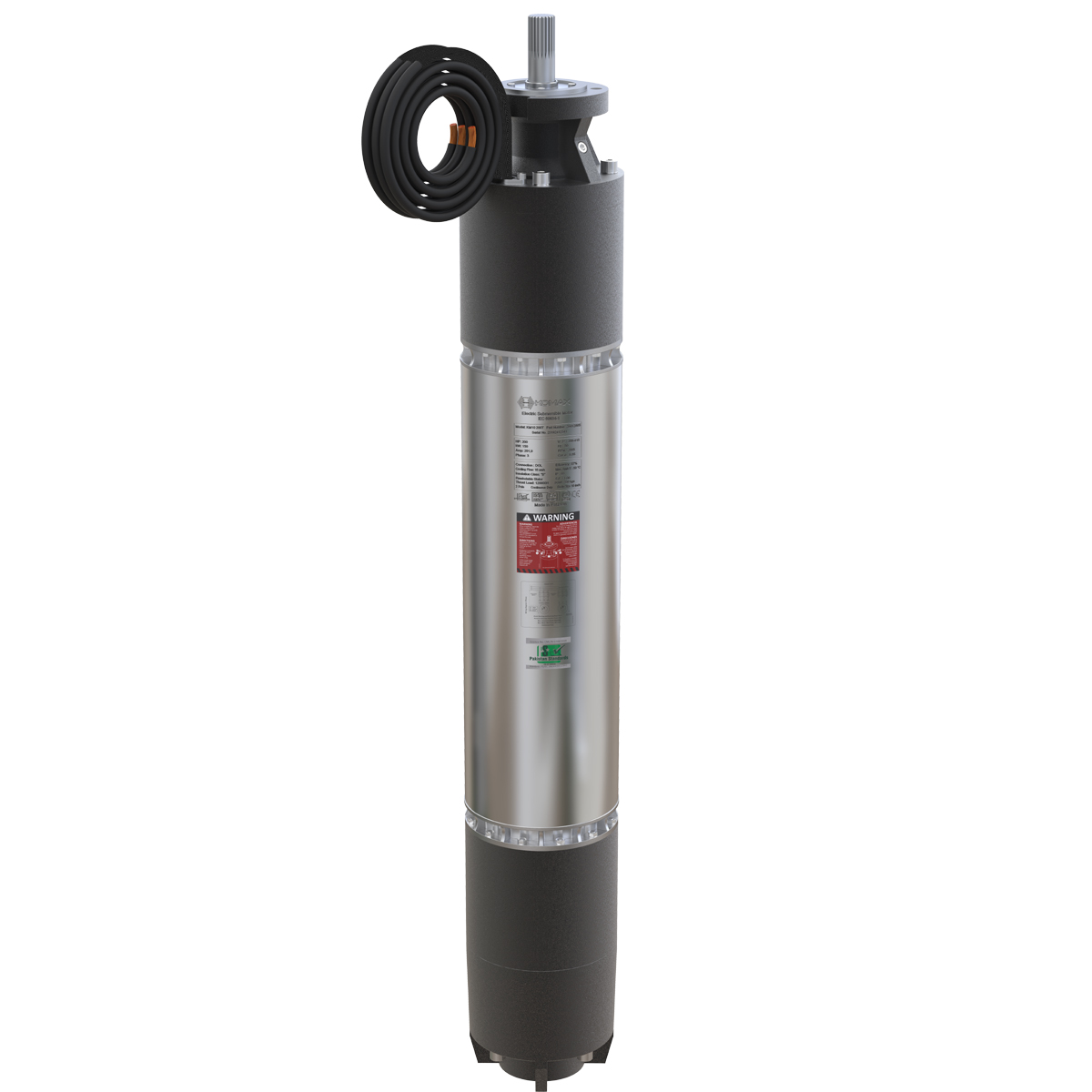

KM10 Series10″

KM10 Series

Municipal supply, mining and mixed-flow systems in 2 or 4-pole.

40–270 HP · 2/4-pole

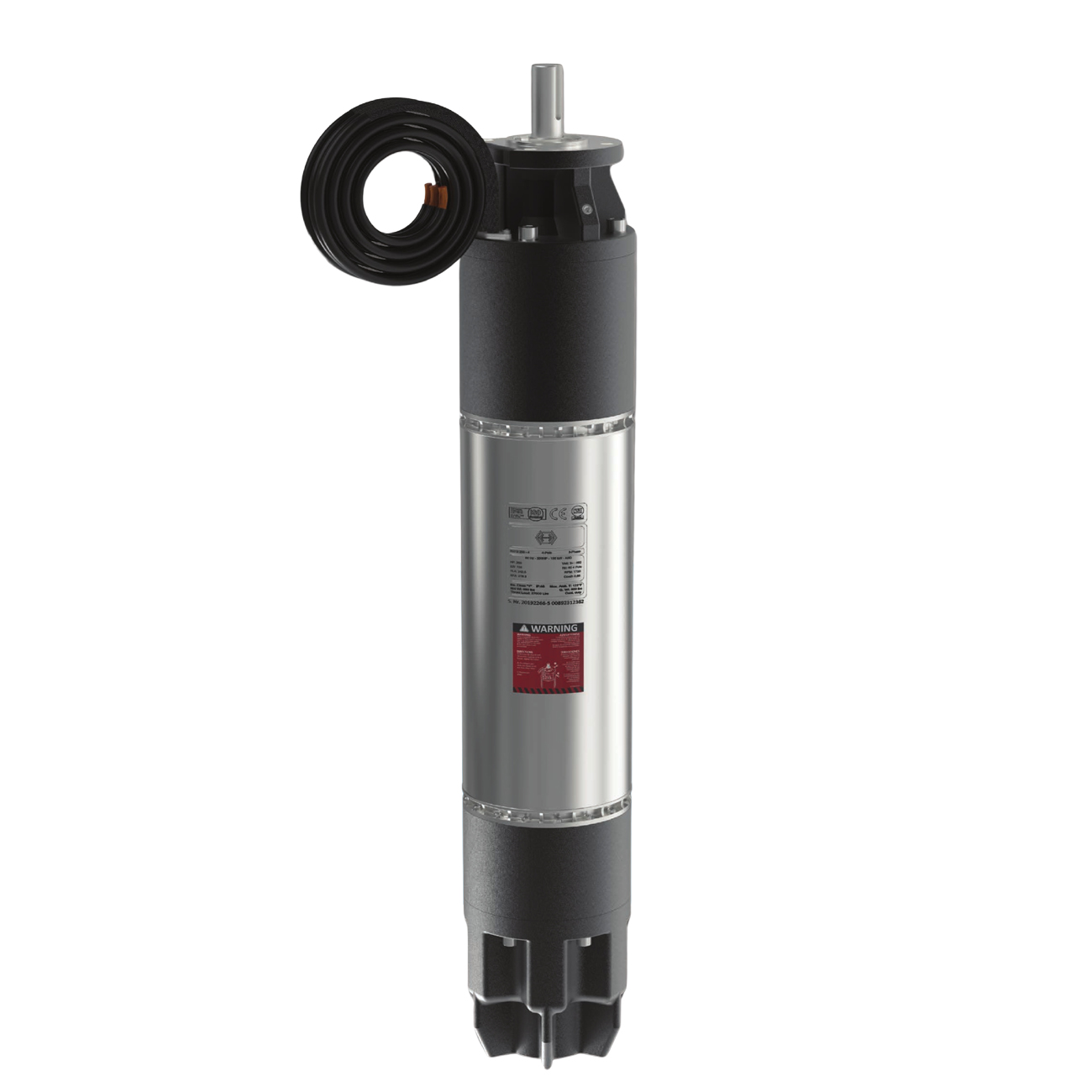

KM12 Series12″

KM12 Series

4-pole torque for the largest municipal and industrial boreholes.

100–300 HP · 4-pole

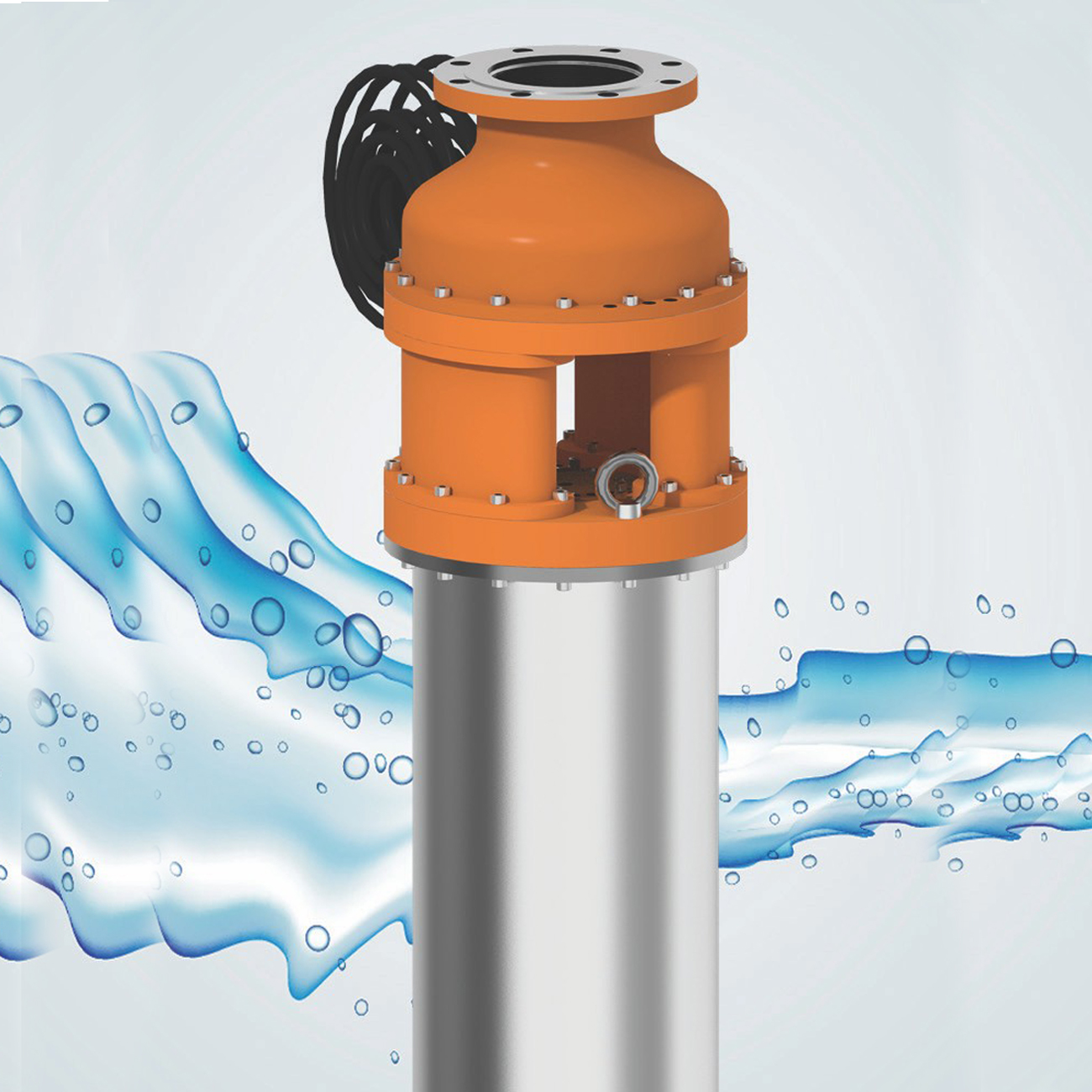

Bottom IntakeBI

Bottom Intake

For tanks, rivers and lakes, installed vertically or on an incline.

30–200 HP · wet-wound
Submersible pumps

Mixed-flow hydraulics matched to KM motors.

KPS Series
KPS · fabricated stainless

KPS Series

Stainless impellers, diffusers and casings for corrosive water, drinking water and food-grade duty.

Max head
567m
Max flow
228m³/h
Bore
5–10in

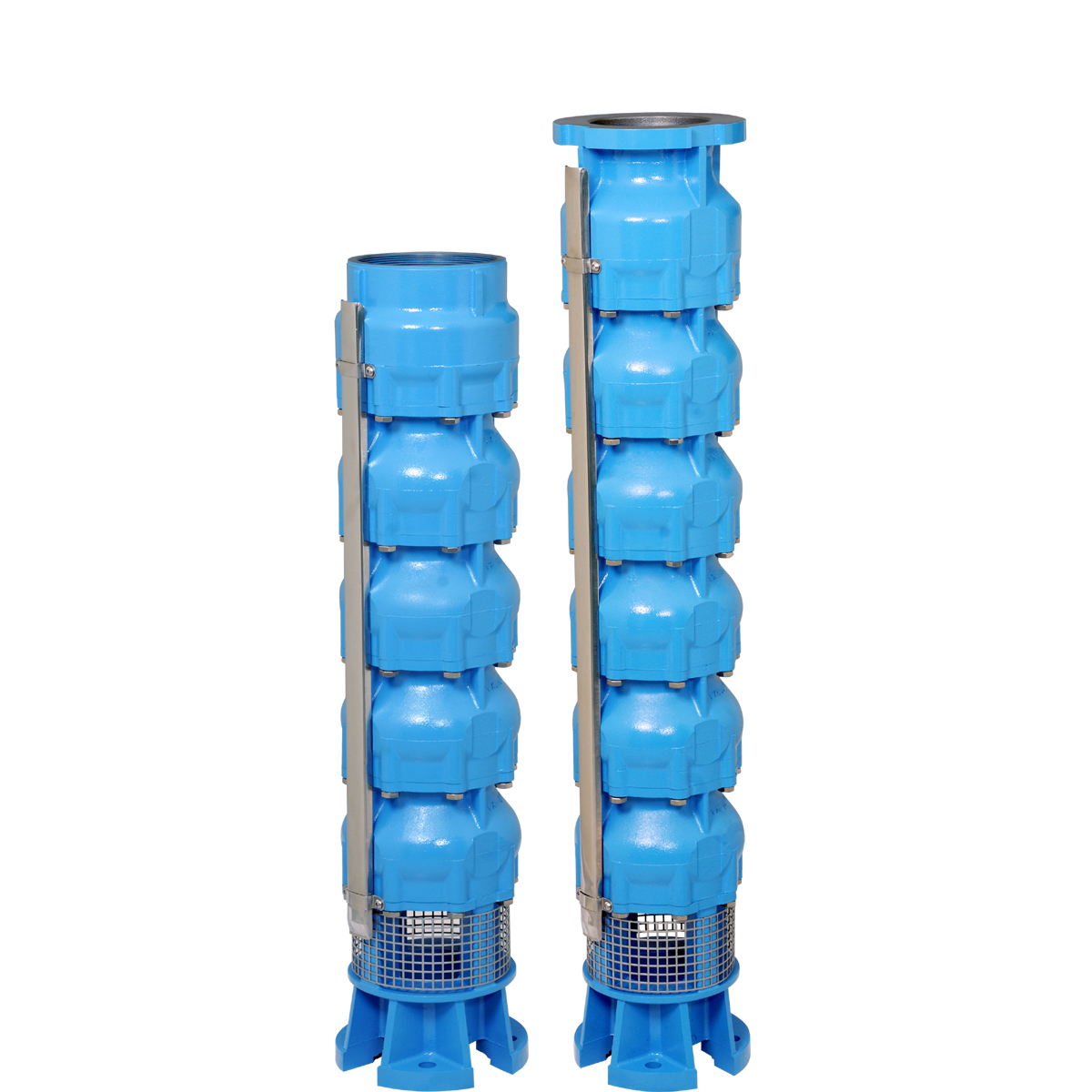

FX Series
FX · cast iron

FX Series

Rugged cast-iron bodies with stainless shaft, bushes and screen, built for high-volume irrigation and flood control.

Max head
552m
Max flow
504m³/h
Bore
8–12in

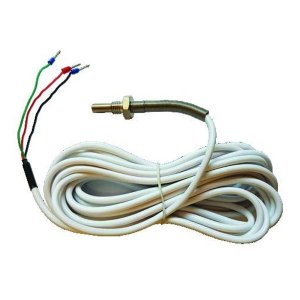

PT100 Temperature SensorPT100 Temperature SensorLive winding temperature to your panel or VFD for KM6, KM8 and KM10.Thrust BearingsThrust BearingsSelf-aligning thrust bearings. Exact-fit for 6″, 8″ and 10″ NEMA motors.Winding WireWinding WirePVC, PE2 or PA insulated copper for wet-wound stator rewinds.
Inside a KM motor

Where the reliability actually comes from.

Low-cost motors save money on steel, seals and copper. These are the parts where we spend it.

2134567TAIL CABLESCHEMATIC · NOT TO SCALE
  1. 1
    Three-layer sealingA seal protector stops sand and mud, a lip/oil seal stops fine sand, and a spring-loaded silicon-carbide mechanical seal closes it.
  2. 2
    SS431 shaft, 40 HRCA single-piece hardened stainless shaft, machined and ground along its full length.
  3. 3
    GG25 brackets, SS304 jacketCast iron with an 8 mm wall, dressed in stainless. Leak-proof and explosion-proof.
  4. 4
    Silicon-steel stator, pure copperLow core losses, with oversized BOPP+BOPET insulated wire inserted by machine.
  5. 5
    Copper-bar rotorPure copper bars in low-loss silicon steel give higher efficiency and a longer service life.
  6. 6
    Mitchell thrust bearingSelf-aligning, water-lubricated sliding blocks. KM6 is rated for 26,600 N of axial load.
  7. 7
    Pressure-equalising diaphragmA rubber diaphragm compensates for internal pressure at depth. The motor is filled with water and non-toxic antifreeze.
  8. +
    Horizontal on requestDouble carbon bushes in both supports allow horizontal and inclined installation.
IP68Degree of protection
A / BInsulation class
50 °CAmbient water temp.
+6/−10%Voltage tolerance
16 cm/sMin. cooling flow
150 mMax. immersion depth
20Max. starts per hour

Data for the KM6 single-flange series, from catalog KM-R0426. Specifications are subject to change.

Uncompromising quality control

Three checks. Every unit. No sampling.

Every unit is checked against its manual before it leaves Lahore. The data on the nameplate is what you get in the well.

  1. Raw material inspection

    Copper purity, steel grade and epoxy integrity are tested against our design specifications before anything is machined.

  2. In-process machining audit

    Quality staff inspect every stage of machining, winding and assembly, not just the finished motor.

  3. Final performance validation

    Efficiency, amperage and power factor are measured on full load to IEEE 112 Method A before dispatch.

Dynamometer testing up to 300 kW
In-house test lab

Dynamometer testing up to 300 kW

  • Full-load dynoPrecision torque and speed
  • 2, 4 & 8-poleAt both 50 Hz and 60 Hz
  • IEEE 112 Method ADirect efficiency measurement
  • Repairs tooRewound motors are re-tested
Quality & certifications

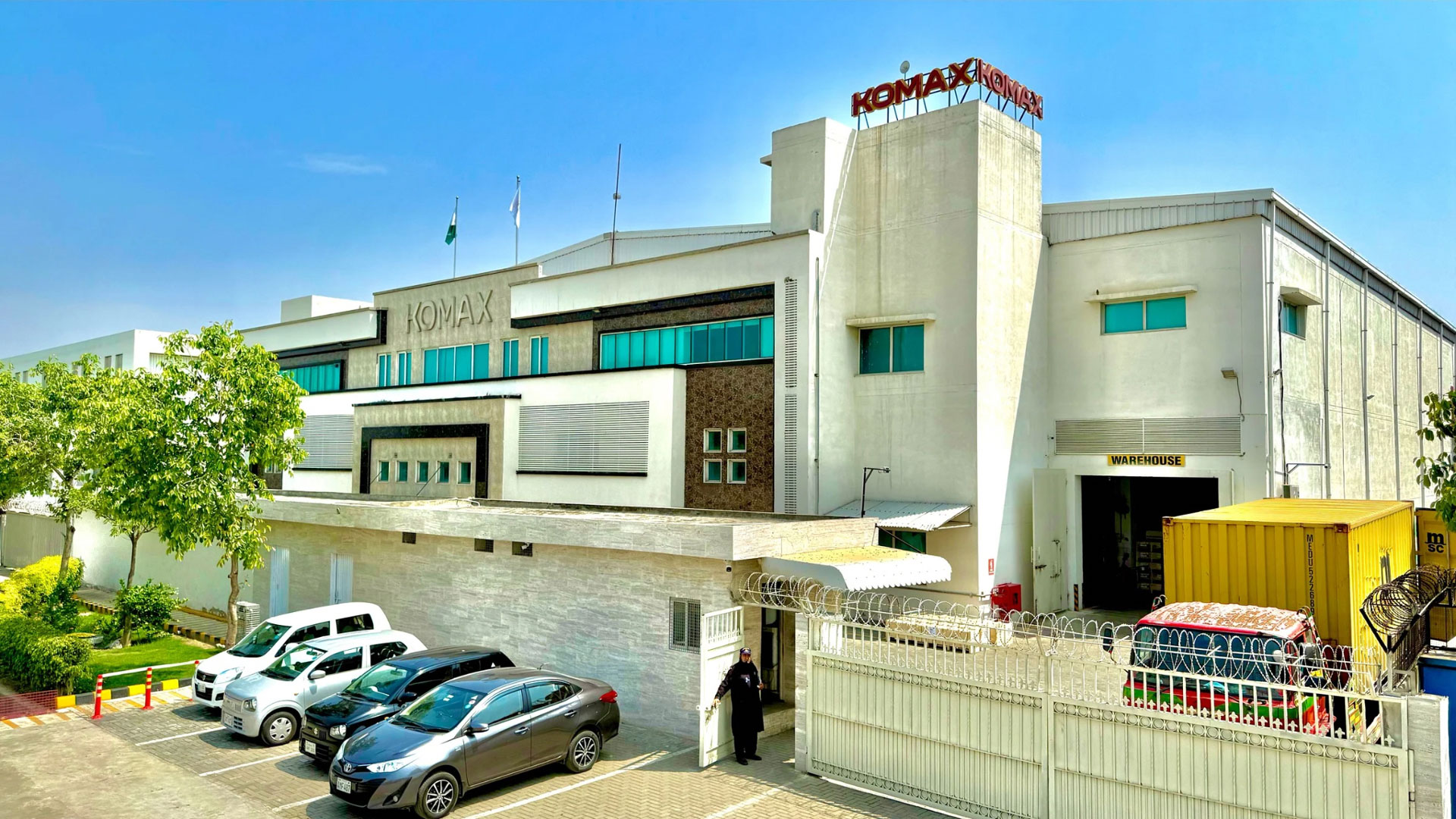

The plant that started Pakistan’s NEMA motor industry.
Plot 722, Sundar Industrial Estate, Lahore
A market leader, not a follower

The plant that started Pakistan’s NEMA motor industry.

KOMAX (Private) Limited was established in 2015. In April 2017 it commissioned a European production plant and became the first company in Pakistan to manufacture 6, 8, 10 and 12-inch NEMA submersible motors.

The plant has CNC machining, fully automated European winding-insertion and assembly lines, steel processing and a dedicated test lab, all under one roof. We serve agriculture, industry, commercial infrastructure, municipal water and oil & gas.

110,000Sq. ft. manufacturing area
30,000Units annual production capacity
12+Countries where KOMAX operates
2017European plant commissioned
Our story
Applications

Built for the wells that can’t go down.

From city water mains to textile mills and canal-command irrigation, KOMAX motors run where downtime costs the most.

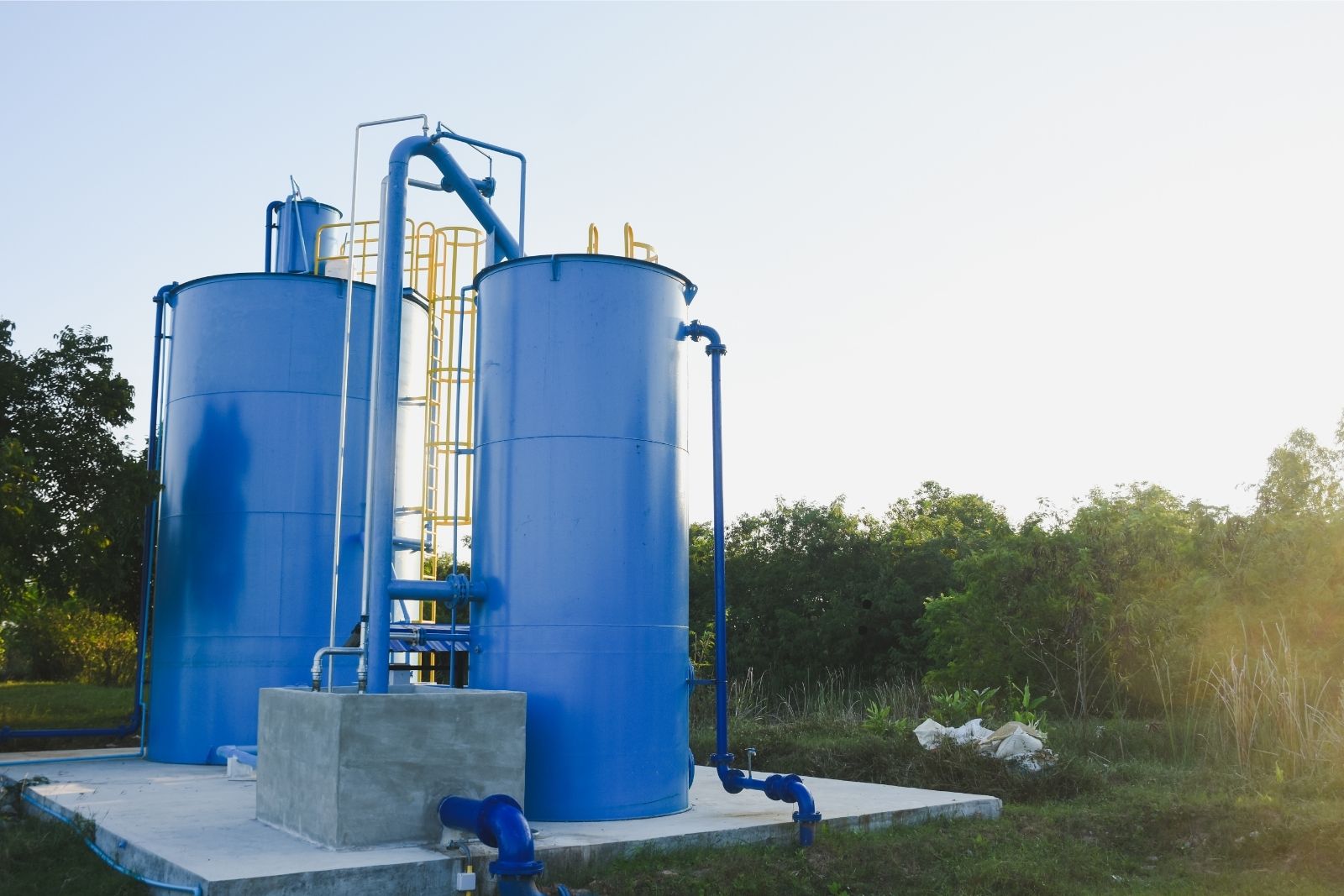

01 / CIVIL & COMMERCIAL

Municipal & commercial water supply

NSF-certified materials for drinking-water networks run by WASAs, development authorities and housing schemes.

  • Water utilities
  • Housing societies
  • High-rise
  • Hospitals
02 / INDUSTRIAL

Industrial & manufacturing

Process water for 24/7 plants, with 316L metallurgy and PT100 monitoring where the water fights back.

  • Steel
  • Textile & denim
  • Cement
  • Chemical & pharma
03 / AGRICULTURE

Agriculture & irrigation

Deep-bore tube wells and pivot systems, with sand-resistant seals and rewindable stators that keep running for seasons.

  • Tube wells
  • Pivot irrigation
  • Farm estates
  • Govt. schemes
Your brand. Our engineering.
OEM & private labeling

Your brand. Our engineering.

Launch your own motor and pump line, built in our plant and finished with your trademark.

  • Digital laser marking on motor bodies
  • Customised manuals and technical literature
  • Branded warranty and registration cards
  • Export-grade packaging, container-ready
Start an OEM project
Repair & rewinding

Restore the motor, not just the winding.

We restore factory performance to KOMAX submersible motors using original design blueprints and factory-grade components.

  • Failure analysis and diagnostics
  • Precision rewinding with factory-grade wire
  • Full-load test on the 300 kW dyno
  • Upgrades: 316L parts, PT100, voltage adaptation
Book a repair
A worldwide reputation

Operating across 12+ nations and 5 continents.

Built to IEC 60034-1 and NEMA for universal compatibility, and configured for 50 or 60 Hz grids from 230 V to 460 V.

The Americas

USA, Mexico, Chile, Argentina

Europe & Middle East

Italy, Saudi Arabia, UAE

Asia & Oceania

Australia, Philippines, Afghanistan, Pakistan

Africa

Kenya and emerging markets

30–45 daysLead time per 20 ft container
50 / 60 Hz230 V to 460 V builds
DistributorsWanted in new regions
KOMAX in motion

From raw steel to a sealed export crate.

Take a walk through the Lahore plant: CNC machining, automated winding, full-load testing and container dispatch.

  1. 01Precision machiningEuropean CNC centres
  2. 02Automatic windingMechanised coil insertion
  3. 03Full-load testingDynamometer up to 300 kW
  4. 04Global dispatchExport-grade crating
Trusted by industry & government

Critical infrastructure runs on KOMAX.

Our motors run in public-sector water and irrigation schemes and in private industrial plants across Pakistan and abroad.

Government & utilitiesHover to pause
Industry
We have integrated KOMAX NEMA-standard motors into several of our key pumping stations across the province. Their energy efficiency and water-cooled rewindable design have significantly reduced our maintenance overheads.
Engr. Muhammad SulaimanExecutive Engineer (XEN), Public Health Engineering Department, KP
We chose KOMAX for our submersible motor requirements because of their superior metallurgy and NSF-certified epoxy coatings. They deliver products that rival European standards in both performance and durability.
Khurram ShahzadHead of Procurement & Technical Services, Aisha Steel Mills
KOMAX’s KPS stainless steel pumps have given us a high-efficiency solution for our industrial water needs. Monitoring motor health through their PT100 sensors gives us the confidence we need for 24/7 manufacturing.
Mian Faisal IjazDirector of Operations, Sapphire Group Pakistan
Buyer questions

Before you send the PO.

These are the questions distributors and project engineers ask most. Installation, selection and technical fundamentals are covered in the full FAQ.

All technical FAQs
What is your normal lead time?

For a 20 ft container, normal lead time is 30 to 45 days from order confirmation along with payment or a copy of the L/C.

Will KOMAX motors couple with my existing pumps?

Yes. Coupling dimensions follow the NEMA standard, so KOMAX motors couple with any NEMA-standard pump and KOMAX pumps with any NEMA-standard motor. Splined and keyway shaft options are available.

Can you manufacture under our brand?

Yes. The water-cooled rewindable motor line and SS and CI borehole pump-sets are available for private labeling, with laser marking, custom manuals and warranty cards.

How do I choose the right horsepower?

You need two values: discharge (m³/h, GPH or L/min) and total dynamic head (m or ft). The pump is selected from its characteristic curves, and the motor horsepower follows from the pump. Send us both and our engineers will size the set.

Are installation manuals supplied?

Yes. Installation and operating manuals ship with every KOMAX pump and motor model.

Request a quote

Send us the duty point. We’ll size the set.

Tell us the flow, head and borehole. An application engineer will reply with a motor and pump selection and pricing. Distributor and OEM enquiries are welcome.
